SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: 6
Barcode: Yes
Barcode number: random
Brand: Goosky
Brand Name: NoEnName_Null
CE: Certificate
Certificate Number: CTB220523018REX-ZS
Certification: CE
Charging Time: 20min
Charging Voltage: 11.1V
Control Channels: 6 channels
Controller Battery: 18650 2800mAh 3.7V
Controller Mode: MODE1,MODE2
Dimensions: 436*71.5*144mm
Drone Weight: 310g
Features: App-Controlled
Flight Time: 5~10
Hign-concerned Chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Electric: lithium battery
Material: Metal,Plastic,Carbon Fiber
Model Number: GOOSKY S2 Rc Helicopter
Motor: Brushless Motor
Operator Skill Level: Beginner
Origin: Mainland China
Package Includes: Original Box,Batteries,Operating Instructions,charger
Plugs Type: XT30
Power Source: Electric
Recommend Age: 14+y
Remote Control: No
Remote Distance: 300M
State of Assembly: Ready-to-Go
Takeoff Weight: 310g
Transit Time (Days): 7-8 minutes
Type: HELICOPTER
Video Capture Resolution: other
Warning: Please install it carefully according to the instructions
Warranty: 3 years

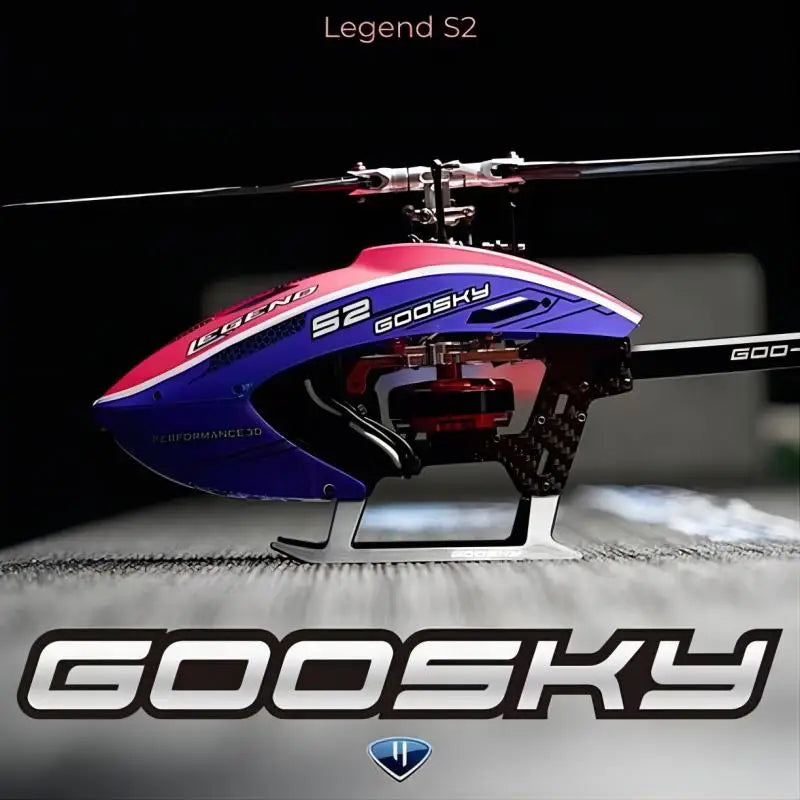

Goosky Legend S2
Redefing The Flight Experience
Dual Brushless Direct Drive
High Performance Aerobatic Helicopter
NEW GAMEPLAY,NEW EXPERIENCE
GTS Flight Control System Reconstruction of Advanced Control Algorithms
Mobile APP Parameter Adjustment
Dual Brushless Motor Direct Drive
Retractable Cover Easy to install and remove Battery
High-Precision High-Performance Aerobatic flight
Easy to Maintain
GOOSKY BORN TO INNOVATION,COME FOR WONDERFUL
S2 is a high-performance product specially
created by the GOOSKY R&D team for RC helicopter players.Various innovative designs will bring players avariety of cool experiences.
The exquisite and compact body can easily play in variousindoor and outdoor scenes.It can be quiet,also can be wild.
PRODUCT PARAMETERS
Brand : Goosky
Model : S2
Length : 436mm
Height : 144mm
Main Rotor Length : 193mm
Main Rotor Diameter : 440mm
Tail rotor diameter : 78mm
Takeoff Weight : 345g
Battery : 11.1V 750mAh 45C
Charging Time : about 20min
Flight time : about 10min
DS15 control actuator :
10g 5V 0.08sec /60°1.65kg.cm All-metal gear digital servo

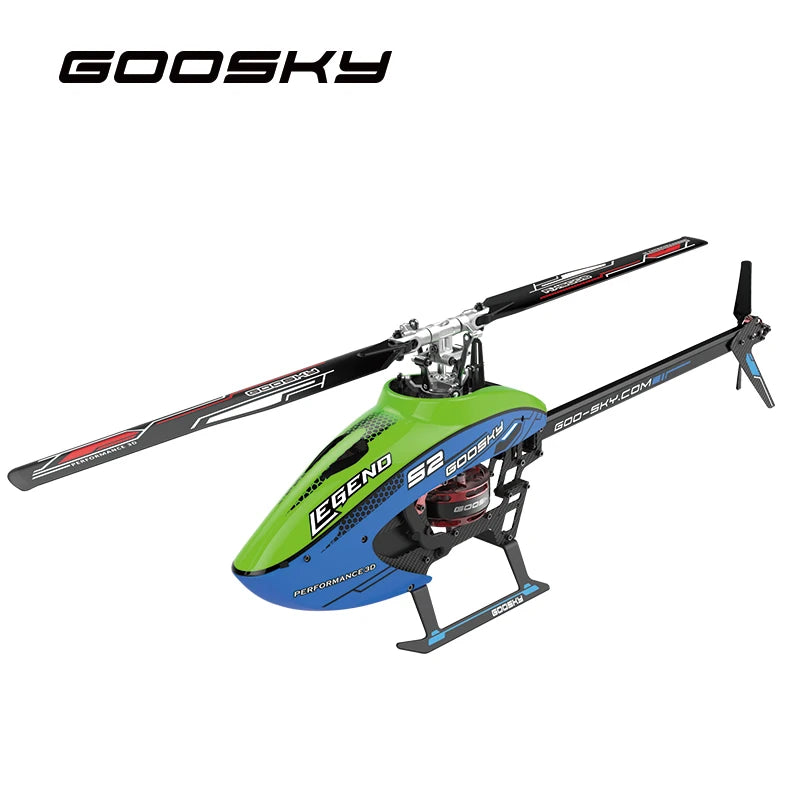

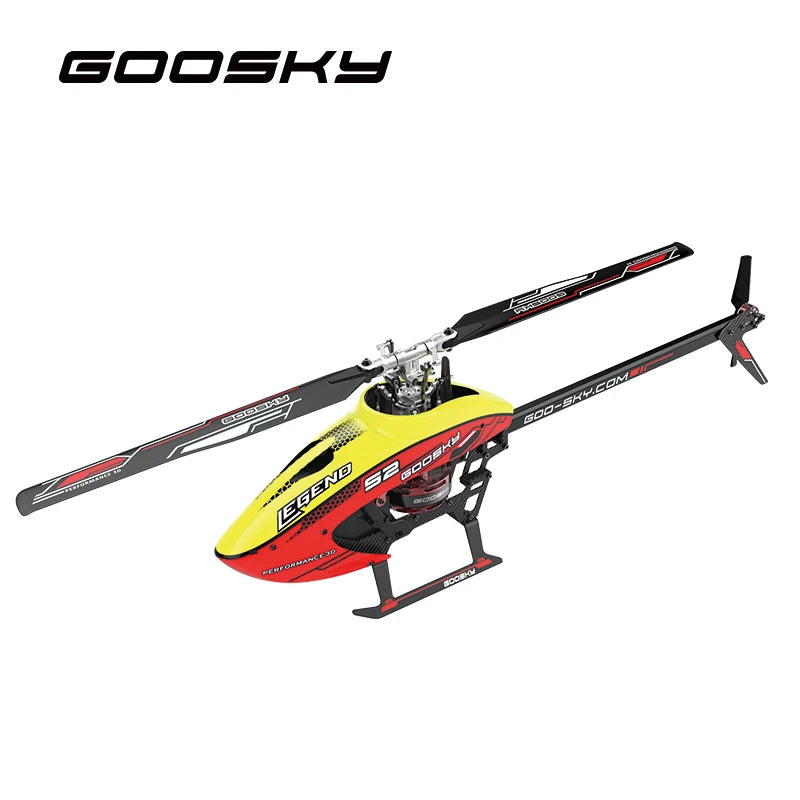

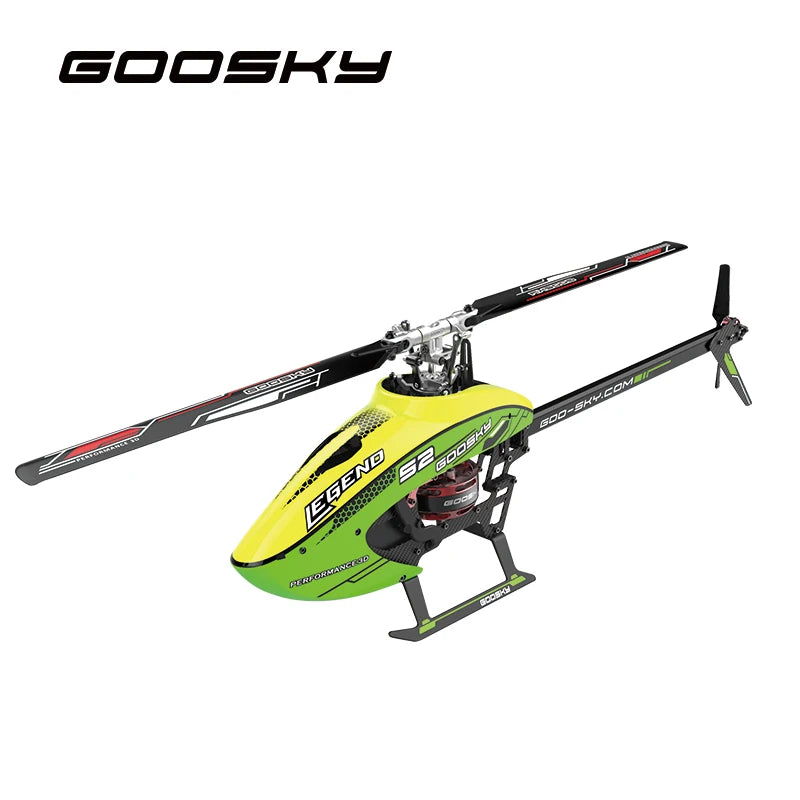

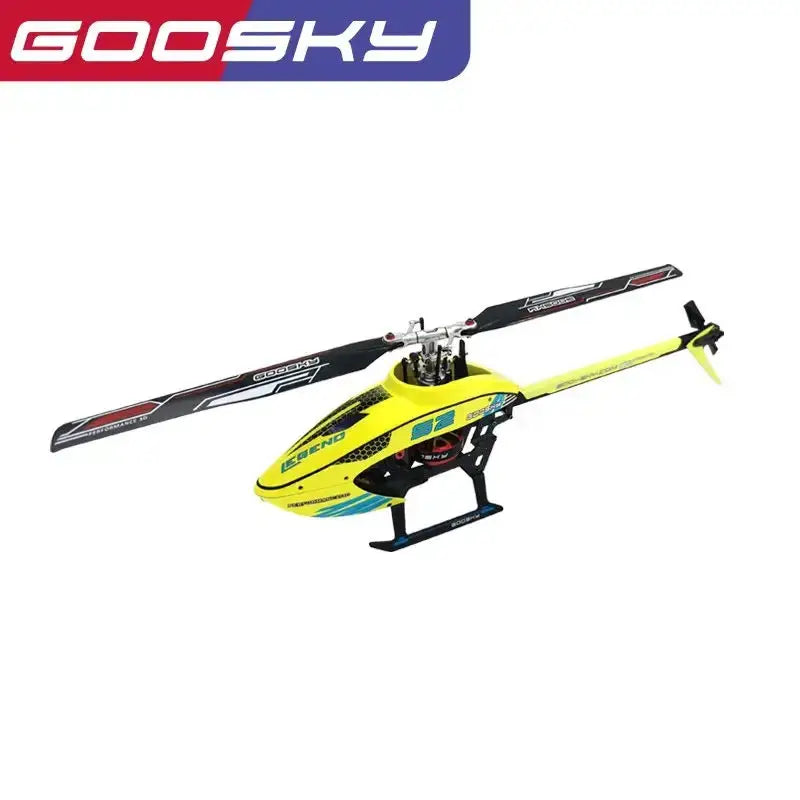

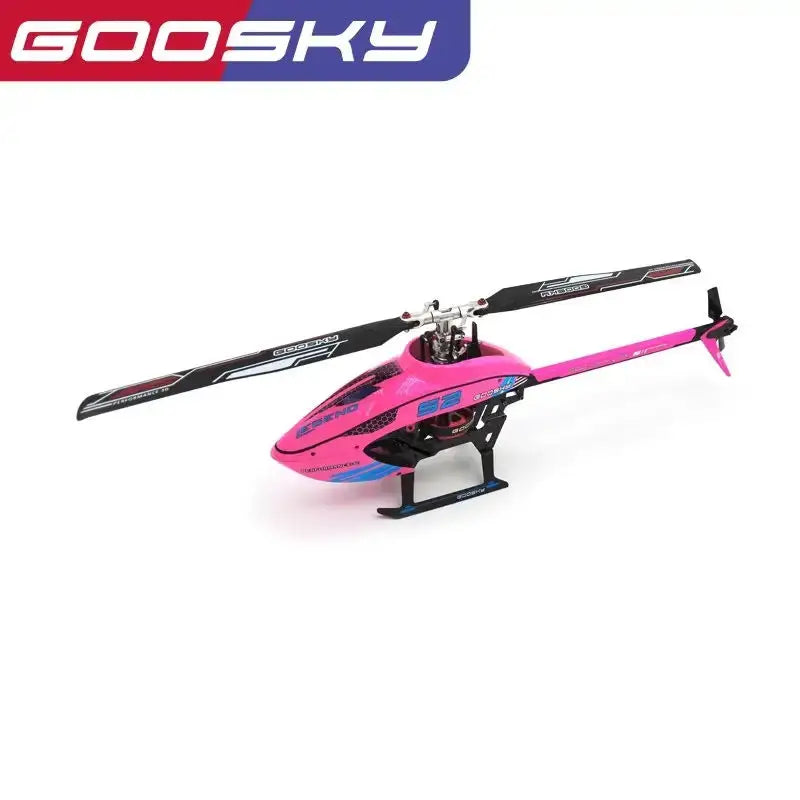

THERE IS ALWAYS A COLOR FOR YOU
DESIGN HIGHLIGHTS
Every detail is a work of ingenuity
● GTS system,newframework algorithm,more precise control and more delicate feel.
● Built-in S-FHSS protocol,compatible with S-BUS,PPM,DSM-X interface
● Wireless program upgrade,Mobile APP parameter adjustment
● Innovative split aircraft head guard for easier battery removal
● Embedded quick Install gasket design
● Initial driving design with motor rotor upward assembly
● Anti-reversion quick-release propeller design
● One-piece concave CNC control actuator bracket,two-layer board strengthens the fuselage,improves accuracy and strength
● CNC metal reinforcements increase strength and enhance aesthetics
● Connecting rod adjustment free design more accurate and convenient
● Flybarless system of FBL,more scientific and more reliable
● Special customization,high strength,light weight,aluminum alloy tail rod
● Special relief force design,the tail rod holder is separated from the main board,The fuselage is thick and the second layer is connected.The crash only causes local damage,and the maintenance cost is lower.
● Mobile APP parameter adjustment
● One-piece lightweight high-toughness nylon landing gear



PRODUCT CONFIGURATION

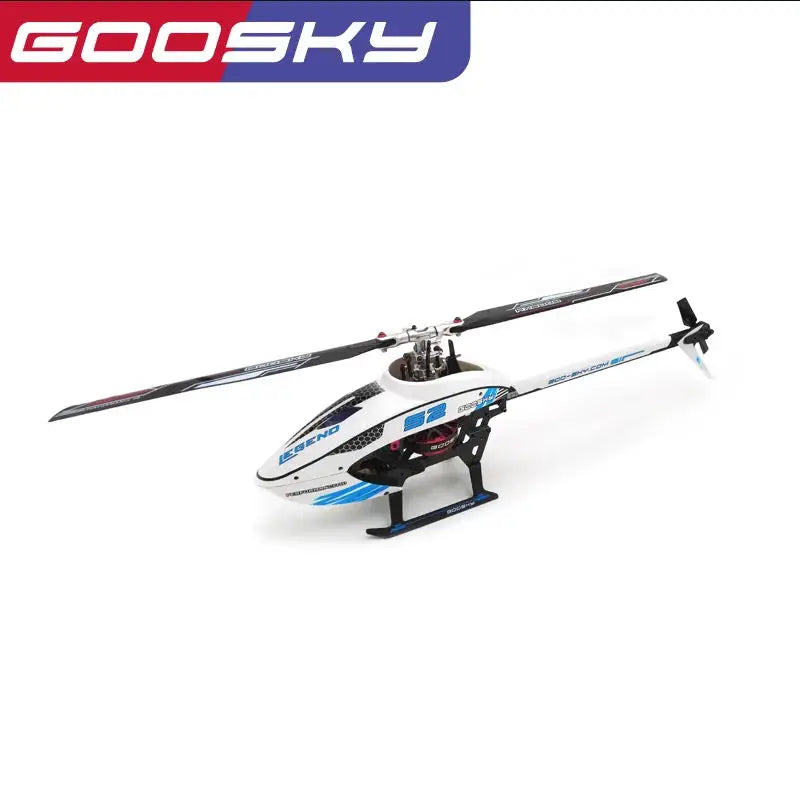

BNF :
1.Helicopter*1pc
2.EPP box*1pc
3.Battery*1pc (installed) 25*25*61mm
4.Some Spare screw
5.Servo arm*3pcs
6.Main axis &Horizontalaxis
7.APP Bluetooth Modue*1pc

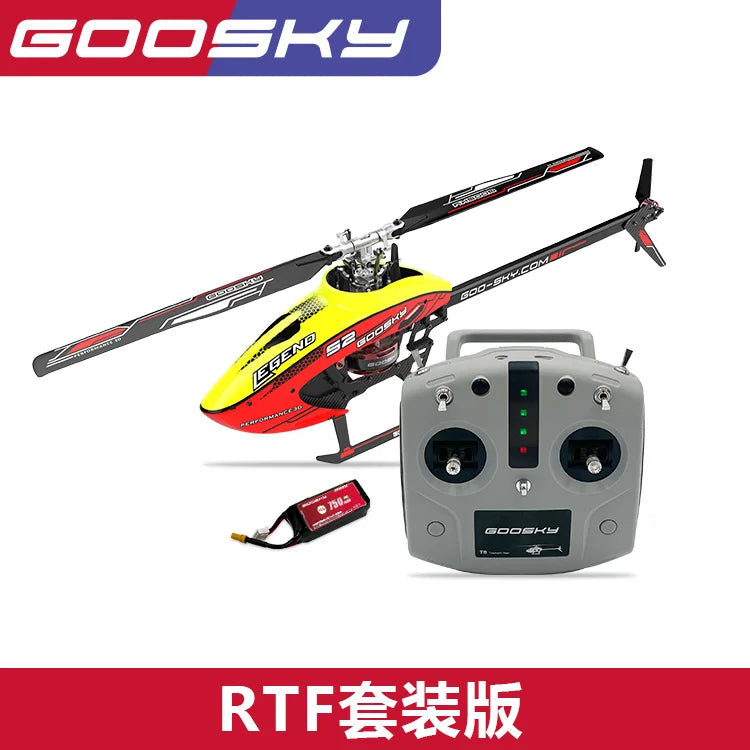

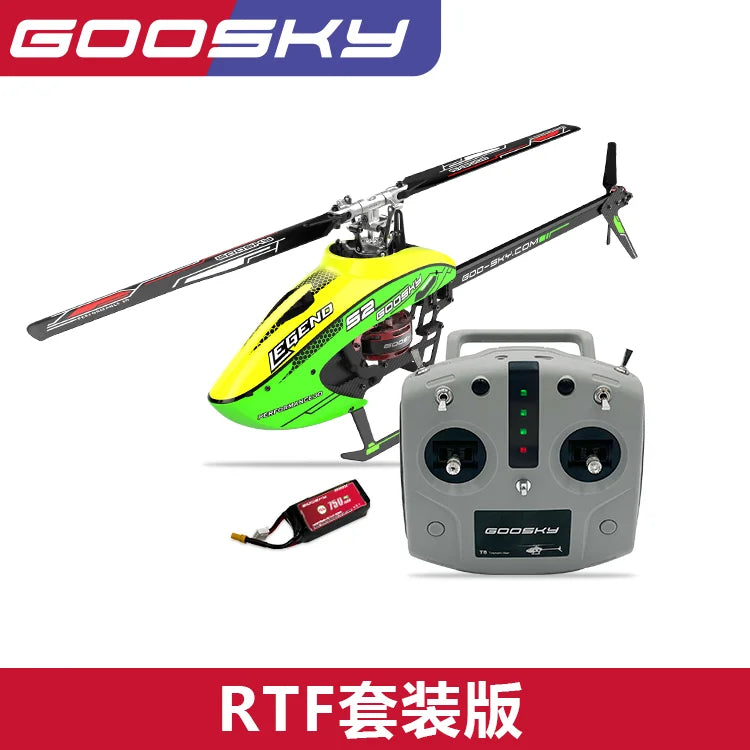

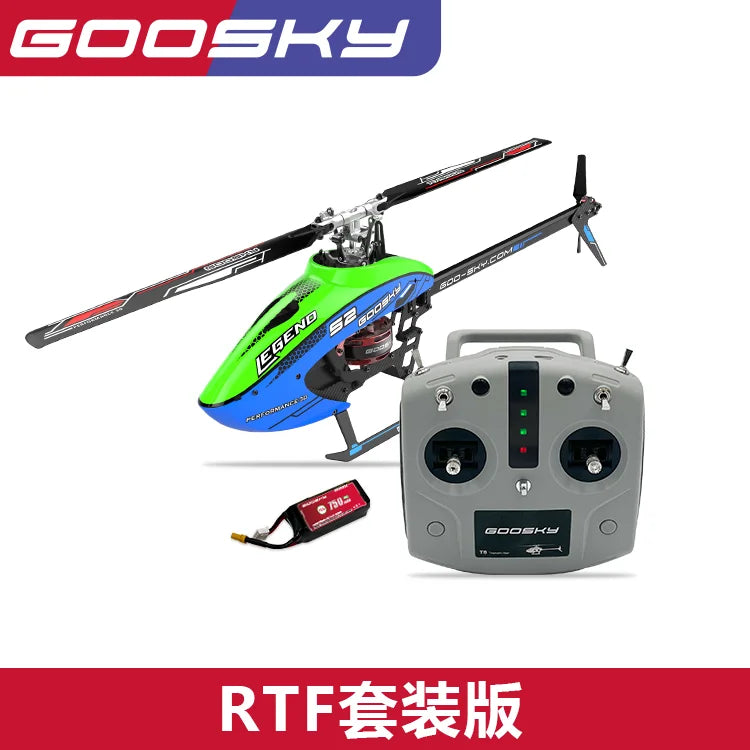

RTF :
1.Helicopter*1pc
2.EPP box*1pc
3.Battery*1pc 25*25*61mm
4.Some Spare screw
5.Servo arm*3pcs
6.Main axis &Horizontalaxis
7.APP Bluetooth Modue*1pc
8.T8 Remote Control *1pc
T8 REMOTE CONTROL
(Optional,Not included)
Extremely brief design,No setup menu required
Product Model:T8
Operating Voltage:3.7V
Charging interface:TYPE-C
Size:153(L)*93(W)*154(H)
Remote control distance:300m
Low voltage alarm:3.35V
Capacitor Specifications:2800mAh 3.7V
Weight:335g
